A residual current circuit breaker; provide valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker. The RCD employ the current balance principle which involve the supply conductor to the load (phase and neutral) being wound onto a common transformer core to form the primary winding. Under healthy circuit conditions, the current in the phase conductor is equal to the current in the neutral and the vector sum of the current is zero. In the event of an earth fault, an amount of current will flow to earth, creating an out of balance situation in the transformer assembly. This out of balance is detected by the secondary winding of the transformer and at a pre-determined level of out of balance will activate the trip mechanism.

• · Fully shrouded terminals
• · Contact position indication on the dolly handle
• · Time delay versions available in 2 configuration
• · A range of enclosures from IP20 up to IP65

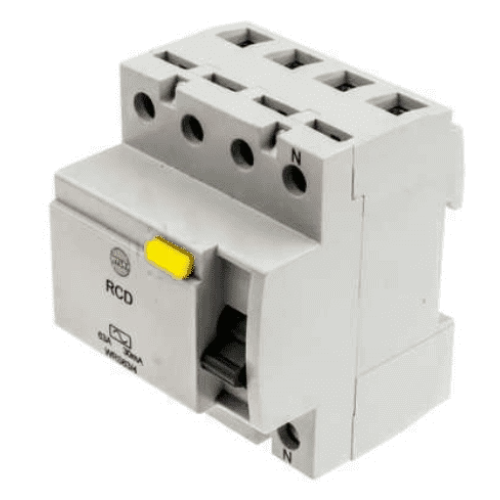

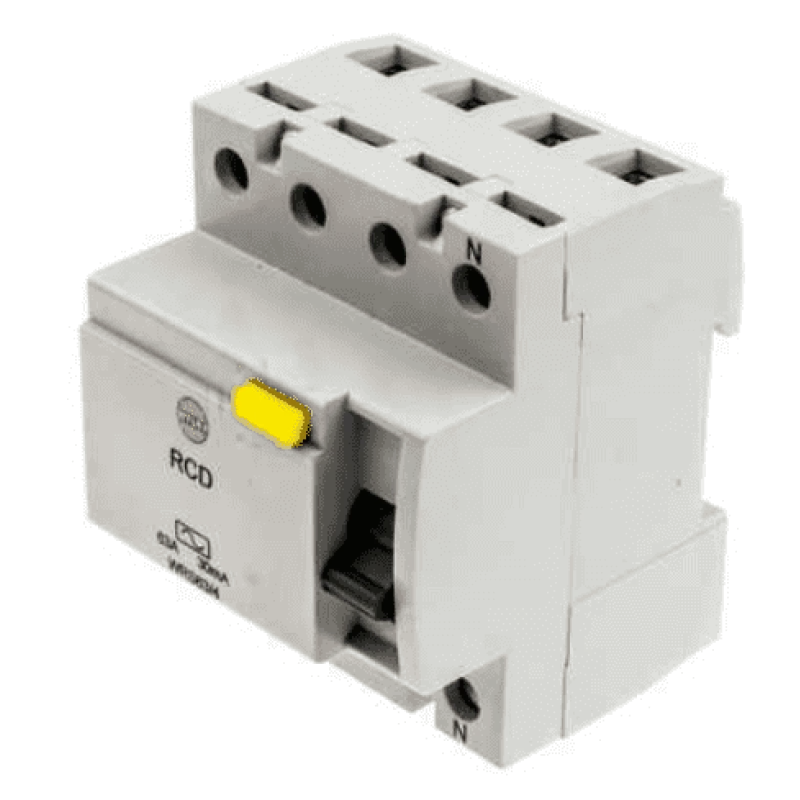

• Residual Current Circuit Breaker (RCCB)

  Residual current circuit breaker (RCCB)

  Feature	Feature details
  Frequency 50/60 Hz Rated current 100 A Mounting method DIN rail	Rated voltage 415 V Number of poles 4 Rated fault current 300 A
