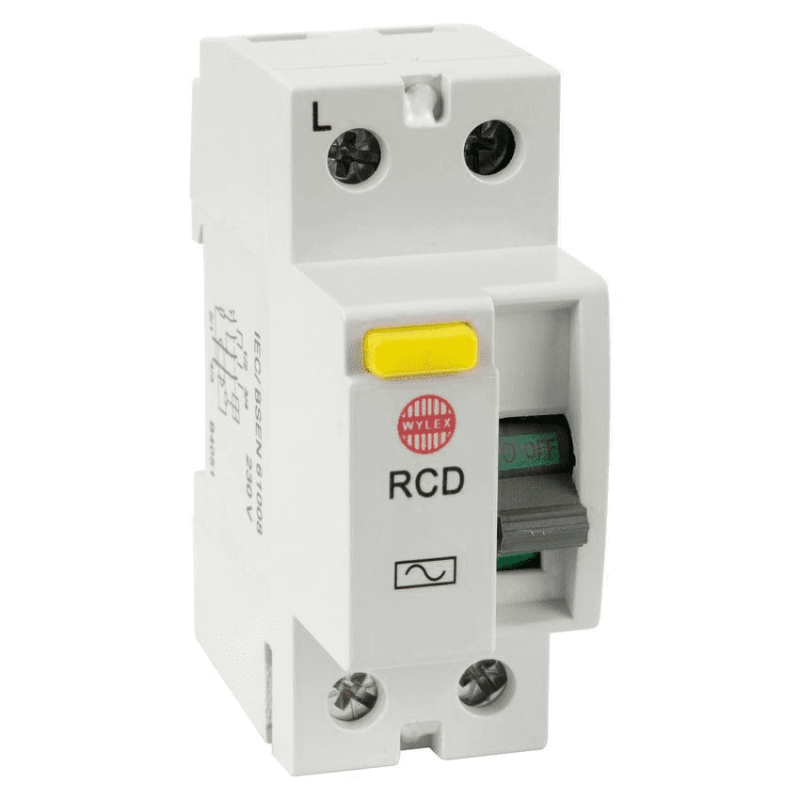

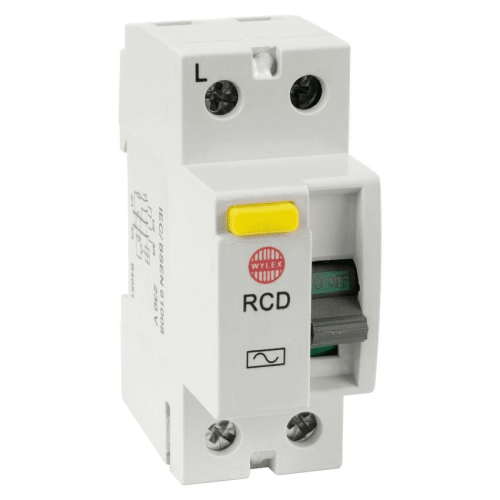

WYLEX RCD 2P 80A 30MA 80MM
Model:WRS80/2
WYLEX RCD 2P 80A 30MA 80MM
Model:WRS80/2
-
£40.79 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£33.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
This residual current circuit breaker, provides valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker. The RCD employ the current balance principle which involve the supply conductor to the load (phase and neutral) being wound onto a common transformer core to form the primary winding. Under healthy circuit conditions, the current in the phase conductor is equal to the current in the neutral and the vector sum of the current is zero. In the event of an earth fault, an amount of current will flow to earth, creating an out of balance situation in the transformer assembly. This out of balance is detected by the secondary winding of the transformer and at a pre-determined level of out of balance will activate the trip mechanism.
- · Fully shrouded terminals
- · Contact position indication on the dolly handle
- · Time delay versions available in 2 configuration
- · A range of enclosures from IP20 up to IP65
- Residual Current Circuit Breaker (RCCB)
Feature Feature details Frequency 50/60 Hz Mounting method DIN rail Rated current 80 A Rated voltage 230 V Number of poles 2 Rated fault current 30 A
