Key Features

• · Easy DIN rail fixing and extraction
• · Push to test button
• · Single pole switching
• · Loss of Neutral Protection
• · Real contact position indicator
• · Safety terminals
• · 30mA Trip sensitivity for protection of personnel and property
• · Ambient Temperature -5 to 55°C
• · AC leakage current type and B release characteristic
• Residual Current Circuit Breaker (RCCB)

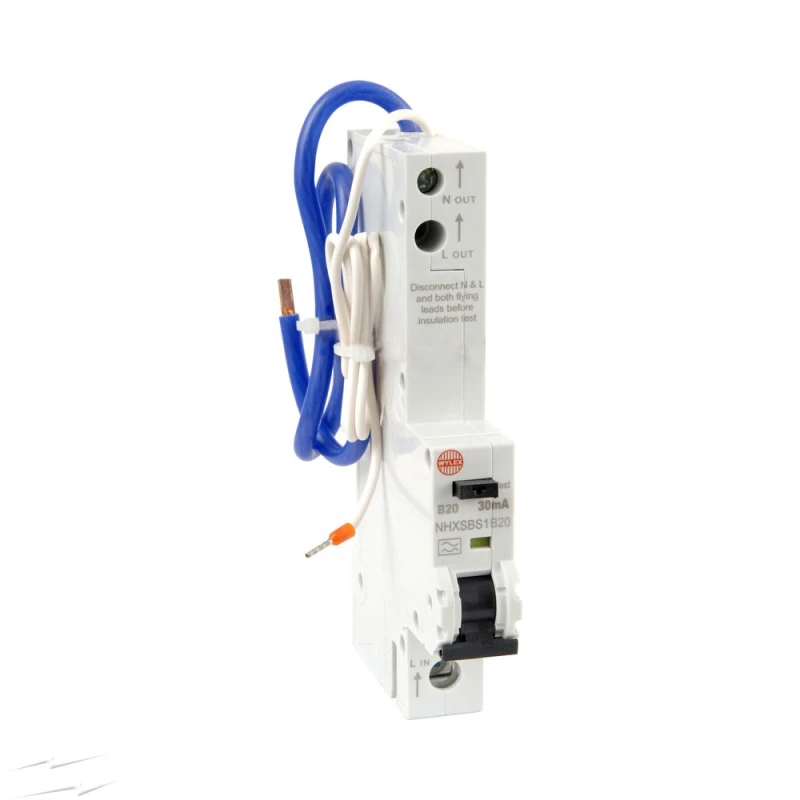

  Residual current circuit breaker (RCCB)

  Feature	Feature details
  Frequency 50/60 Hz Degree of protection (IP) IP20 Mounting method DIN rail Rated voltage 240 V	Rated current 20 A Number of poles 1 Rated fault current 30 A Short-circuit breaking capacity (Icw) 6 kA
