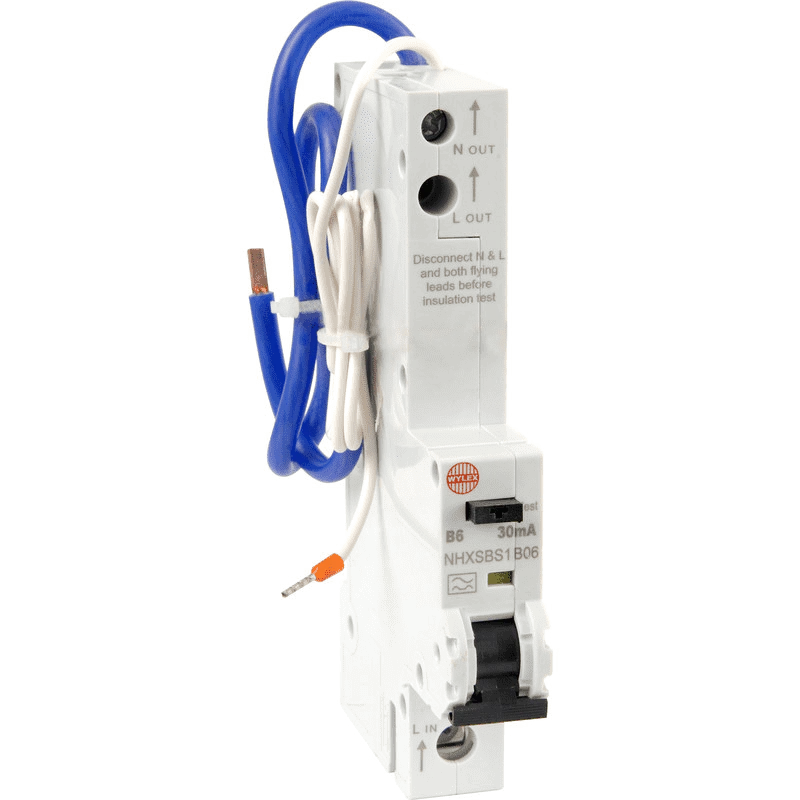

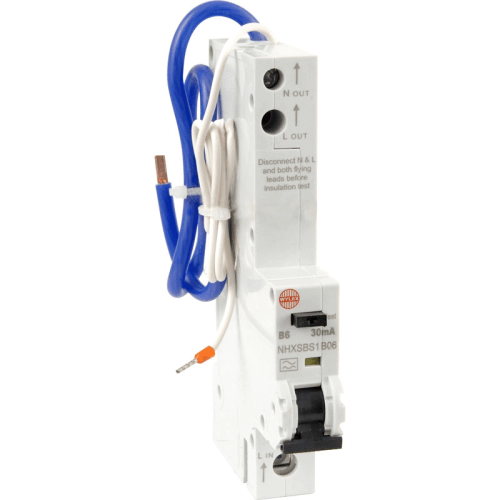

WYLEX NHXSBS1B06 RCBO SP 1MOD TYPE B 6A
Model:NHXSBS1B06
WYLEX NHXSBS1B06 RCBO SP 1MOD TYPE B 6A
Model:NHXSBS1B06
-
£30.34 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£25.28 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Key Features
- · Easy DIN rail fixing and extraction
- · Push to test button
- · Single pole switching
- · Loss of neutral protection
- · Real contact position indicator
- · Safety terminals
- · 30mA trip sensitivity
- · Ambient temperature: -5 to 55°C
- · AC leakage current type and B release characteristic
- Residual Current Circuit Breaker (RCCB)
Feature Feature details Degree of protection (IP) IP20 Mounting method DIN rail Frequency 50/60 Hz Rated current 6 A Number of poles 1 Rated voltage 240 V Rated fault current 30 A Short-circuit breaking capacity (Icw) 6 kA
