This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop.
 Key Features

• · 18mm wide modules
• · Compliant with BS EN 60898 and EN 60947-2
• · Suitable for use within NH Distribution Board
• · DIN rail mounting
• · Easy to operate handle with a trip-free toggle mechanism
• · 30°C calibration temperature

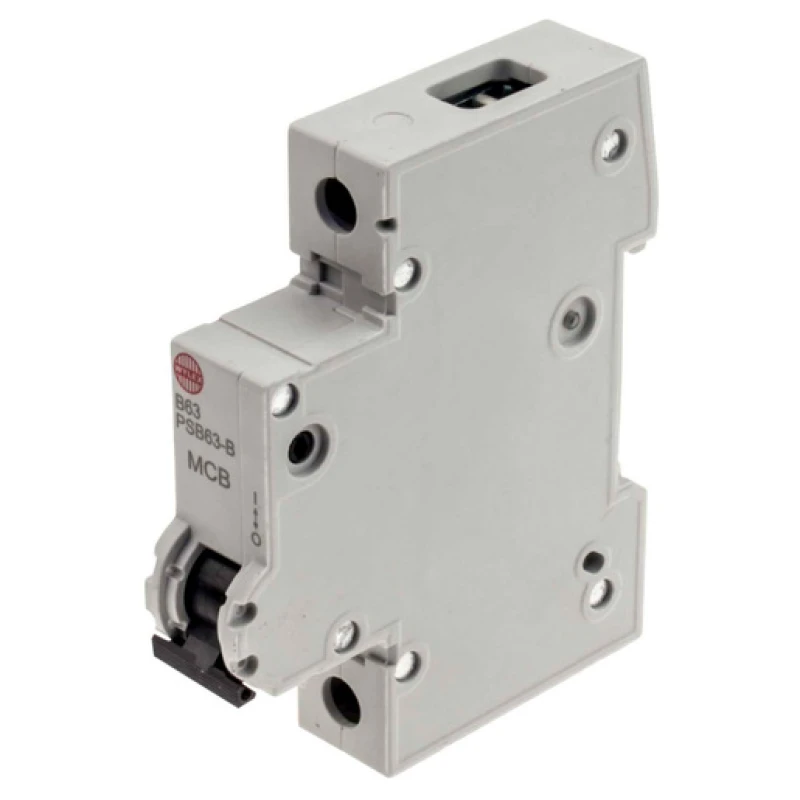

• Miniature circuit breaker (MCB)

  Feature	Feature details
  Release characteristic B Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1	Rated current 63 A Rated voltage 400 V Degree of protection (IP) IP20 Voltage type AC Frequency 50 - 60 Hz
