Uses a flexible configuration to provide the optimal combinations of RCD protected circuits
and circuits with individual RCBO or MCB protection
Almost unlimited combinations

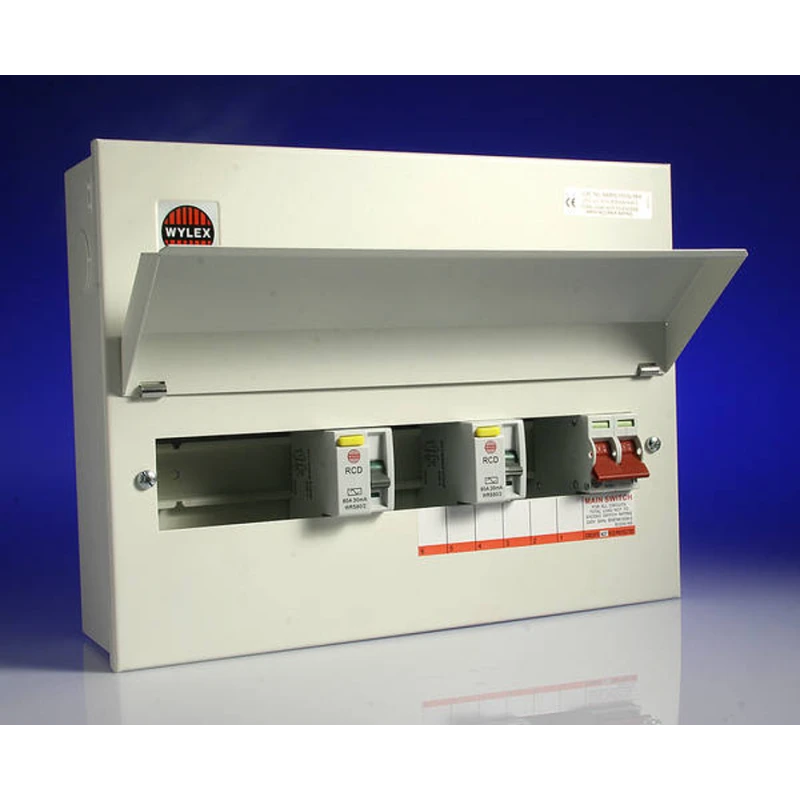

1 x 100 Amp DP Main switch controls the entire board and allows for up to 5 x RCBO's or MCB's circuits
2 x 80 Amp 30mA RCD allowing form RCD circuits to be split around a building

Max No of MCB's or RCBO's = 10

Key Features

• All metal enclosure, no external plastic parts
• Low Smoke & Fume paint
• Compact enclosure
• Available in ‘no miss terminal’ fixed busbar versions and flexible versions
• Raised & removable DIN rail / busbar assembly

• Cable entry knockouts on 5 sides, top, bottom, left, right and rear
• RoHS compliant in excess of UK standards
• UKAS certified to BS EN 61439-3
• Optional
  Non-combustible cover blanks
  Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails

Dimensions:
Height: 261mm (max)
Depth: 98mm
Depth with cover: 121mm
Width: 343mm.
