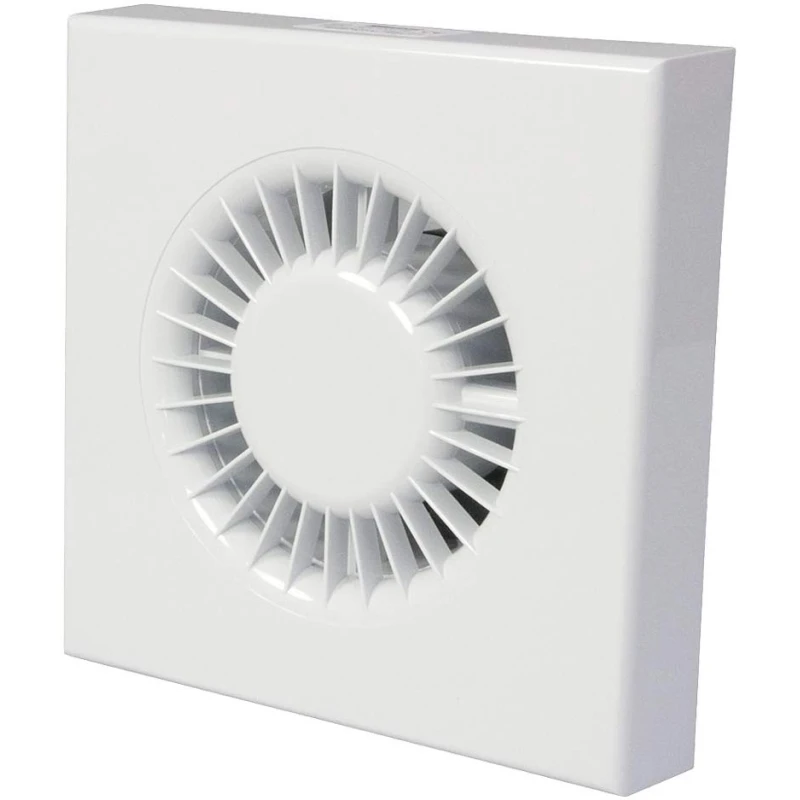

The Domus Ventilation SDF100PB is part of the SDF range of Standard Axial Fans, this particular fan is 100mm (4") with a pullcord facility.

The SDF100PB offers energy performance levels that meet the current building regulations, and it aims to reduce mould and condensation making them ideal for bathrooms and toilets.

The main features of the SDF100PB fans are:

Pullcord version

Maintenance free

Window fit option available when purchased with SDF901WFK

Meets building regulations and requirements

Technical specifications of the SDF100PB are:

Max extract volume (l/s) - 22

Max extract volume (m3/h) - 80

Max pressure (Pa) - 16

Supply frequency (Hz) - 50

Max power (W) - 12

Max sound level dB(A) @ 3m - 32

Weight (kg) - 0.6

IP rating - X4

Max operating temperature (°C) - 40

Wall-fit hole diameter - 110mm

Window-fit hole diameter - 127-140mm

Suitable for glass thickness - 4-25mm

Warranty - 2 years

Dimensions: (H) 166 x (W) 166 x (Overall D) 80mm
