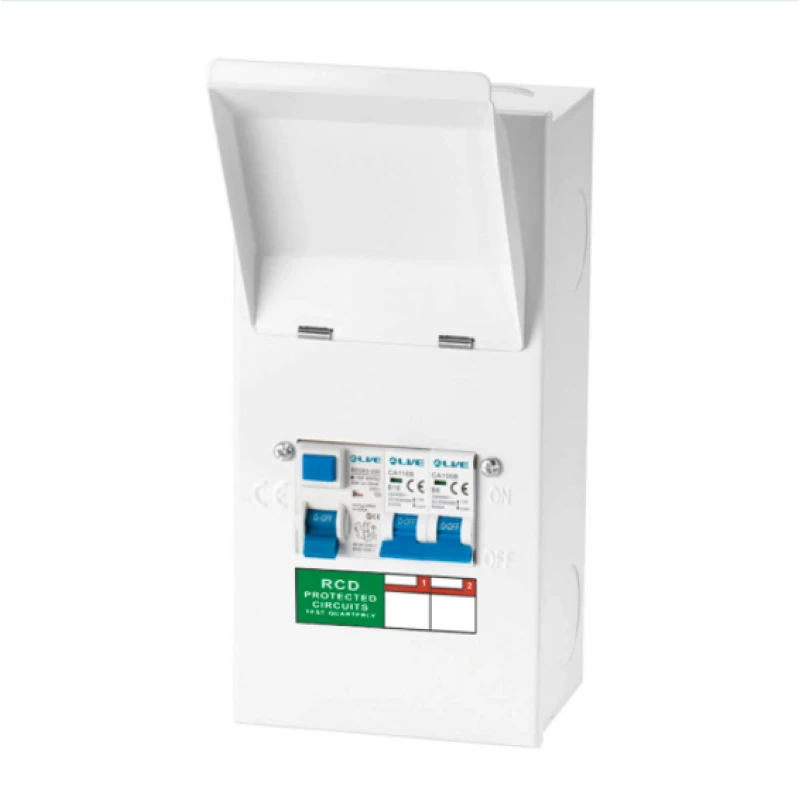

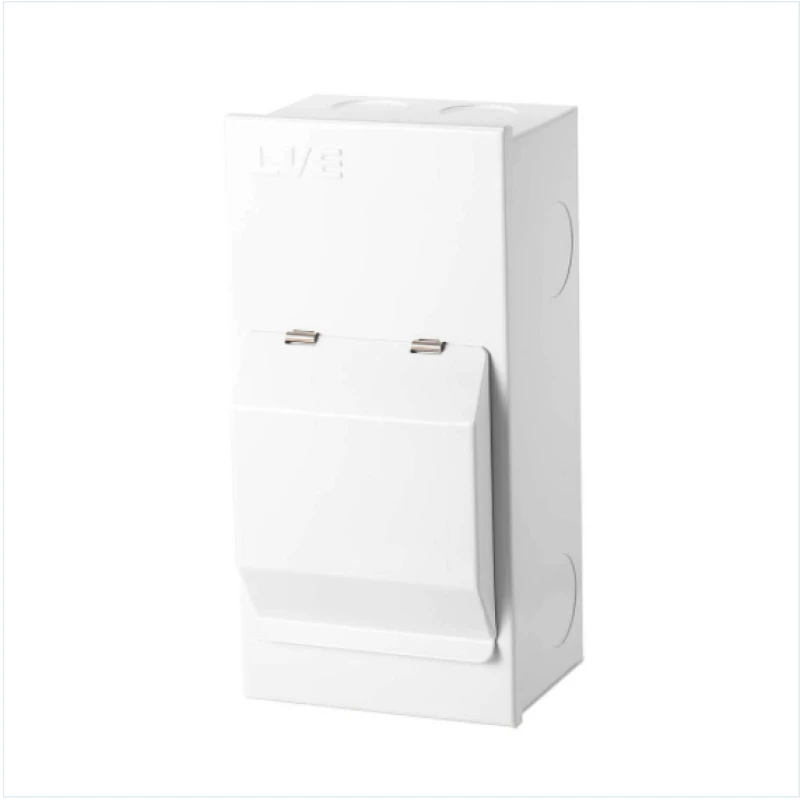

Live Electrical 4 Way C/W 100A Main Switch Mini Garage Unit + B6A/B16A MCB
Model:MMGUMS616
Live Electrical 4 Way C/W 100A Main Switch Mini Garage Unit + B6A/B16A MCB
Model:MMGUMS616
-
£27.59 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£22.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Consumer unit enclosures supplied with blank, Neutral Cable, Busbar, Neutrual & Earth Terminal bar, Din Rail
- Fully enclosed metal construction body with drop down metal lid.
- Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 40mm on the sides, and back plus larger rear slots.
- Raised key holes for secure easy installation.
- Raised Din rail improves cable routing.
- Modern style finished in white polyester powder coating to RAL9010.
- Large and accessible wiring space, with extra space for RCBOs, MCBs,
- Flexible connection allows for various configurations of protected ways.
- Dimensions: 125 X 183 X 110mm
- Operating Voltage: 230/50Hz
- Maximum Load(A): as indicated on incoming device
- Material: manufactured from robust steel
- Protection Degree: IP40
- Standard: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230/50Hz
- Maximum Load(A): as indicated on incoming device
- Material: manufactured from robust steel
- Protection Degree: IP40
- Standard: BSEN61008, BS EN60898, BS EN61439-3
