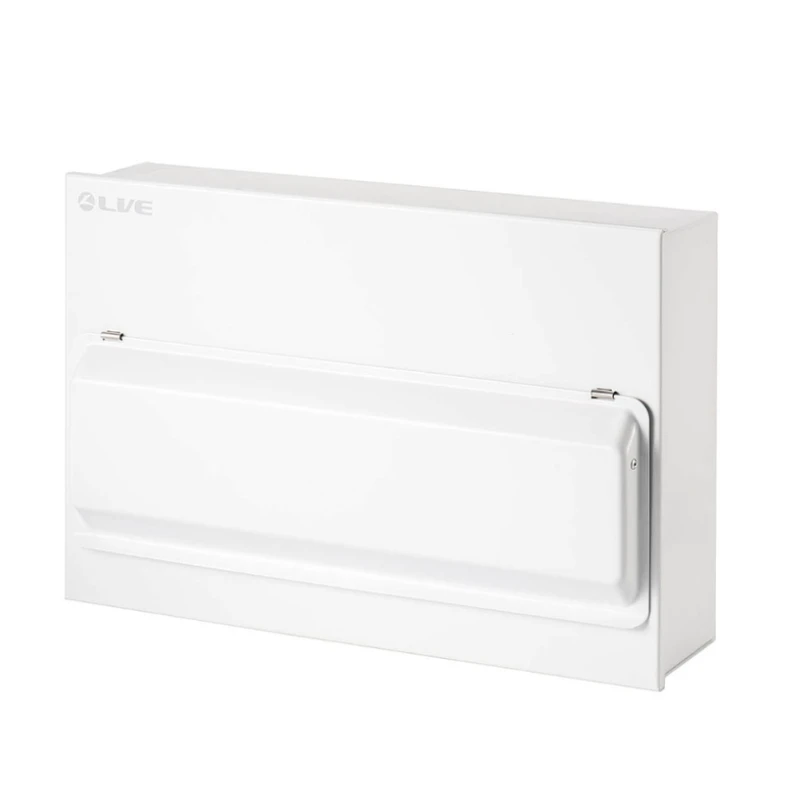

Live Electrical 18 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA DP Surge Arrester (14 Useable Ways)

Model:MCU18M-SP

Live Electrical 18 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA DP Surge Arrester (14 Useable Ways)
Live Electrical 18 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA DP Surge Arrester (14 Useable Ways)

Live Electrical 18 Way Metal Consumer Unit c/w 100A Main Switch+20/40kA DP Surge Arrester (14 Useable Ways)

Model:MCU18M-SP

  • £63.59 Inc VAT ( FREE UK Delivery On Orders Over £150* )

  • £52.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )

Product: In Stock
  • Fully enclosure metal construction body with drop down metal cover and metal lid.
  • Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 40mm on the sides, and back plus larger rear slots.
  • Raised key holes for secure easy installation.
  • Modern style finished in white polyester powder coating to RAL9010.
  • Fitted with Earth/Neutral Terminal Bar and Busbar.
  • Raised Din Rail improves cable routing.
  • Large and accessible wiring space.
  • Flexible connection allows for various configurations of protected ways.
  • Dimensions: HxWxD - 252x377x110m


  • Operating Voltage: 230/50Hz
  • Maximum Load (A): as indicated on incoming device
  • Material: manufactured from robust steel
  • Standard: BS EN61643-11, BS EN60947-3, BS EN61439-3
