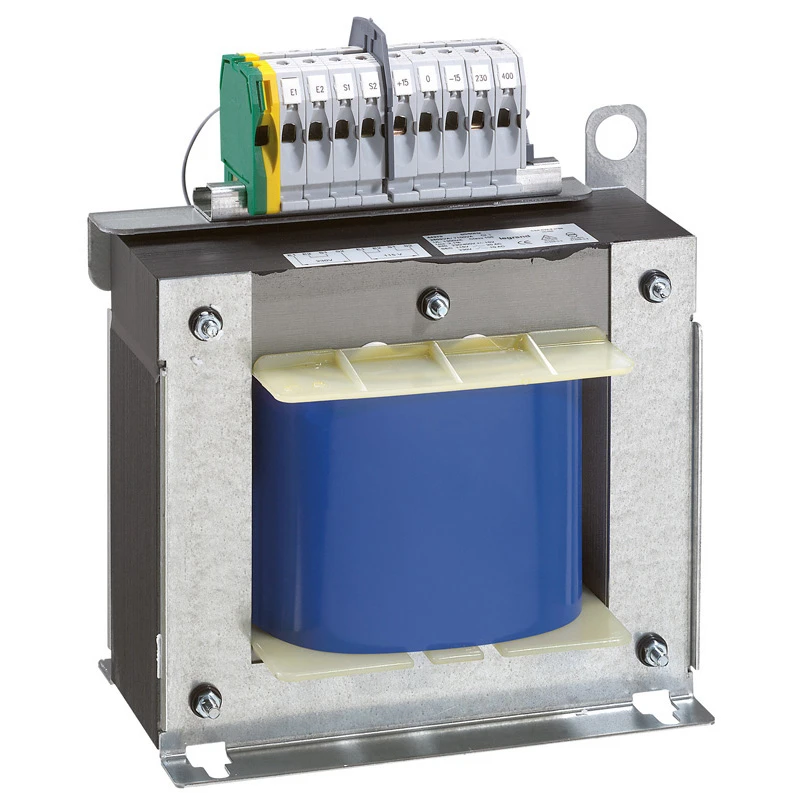

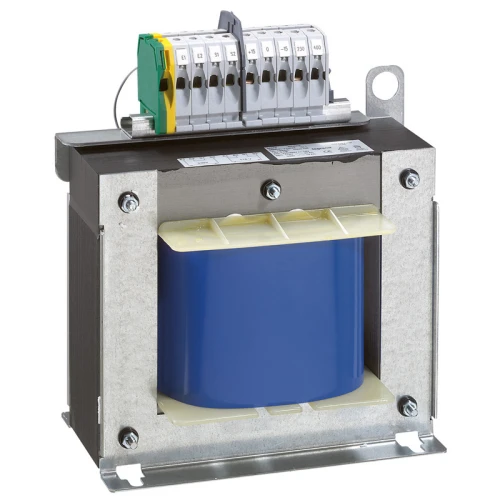

LEGRAND TRANSFORMER 1600VA 230-400V/24-48V
Model:044239
LEGRAND TRANSFORMER 1600VA 230-400V/24-48V
Model:044239
-
£479.99 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£399.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
| Built as autotransformer | no |
| Built as isolating transformer | no |
| Built as safety transformer | yes |
| Depth | 191 mm |
| Height | 245 mm |
| IP-rating | Other |
| Primary voltage 1 | 215...215 V |
| Primary voltage 2 | 230...230 V |
| Primary voltage 3 | 245...245 V |
| Primary voltage 4 | 385...385 V |
| Primary voltage 5 | 400...400 V |
| Primary voltage 6 | 415...415 V |
| Rated apparent power | 1600 VA |
| Relative short circuit voltage | 1.66 % |
| Ring core | no |
| Secondary voltage 1 | 24...24 V |
| Secondary voltage 2 | 48...48 V |
| Short-circuit-proof | no |
| Suitable for mounting on PCB | no |
| Type of insulation material acc. IEC 85 | B |
| Width | 220 mm |
