The FuseBox range of circuit protection/metal consumer unit and protection devices offers flexible versatile solutions for 18th Edition electrical installations.

The FuseBox surge protection metal consumer units with a 100A rated MS (Main Switch) incomer and T2 SPD (Surge Protection Device). Surge protection consumer units provide formidable circuit protection against surge and overload. When fitted with additional RCBOs (Residual Current Circuit Breaker with Overload Protection) as an outgoing device, you also get residual current protection.

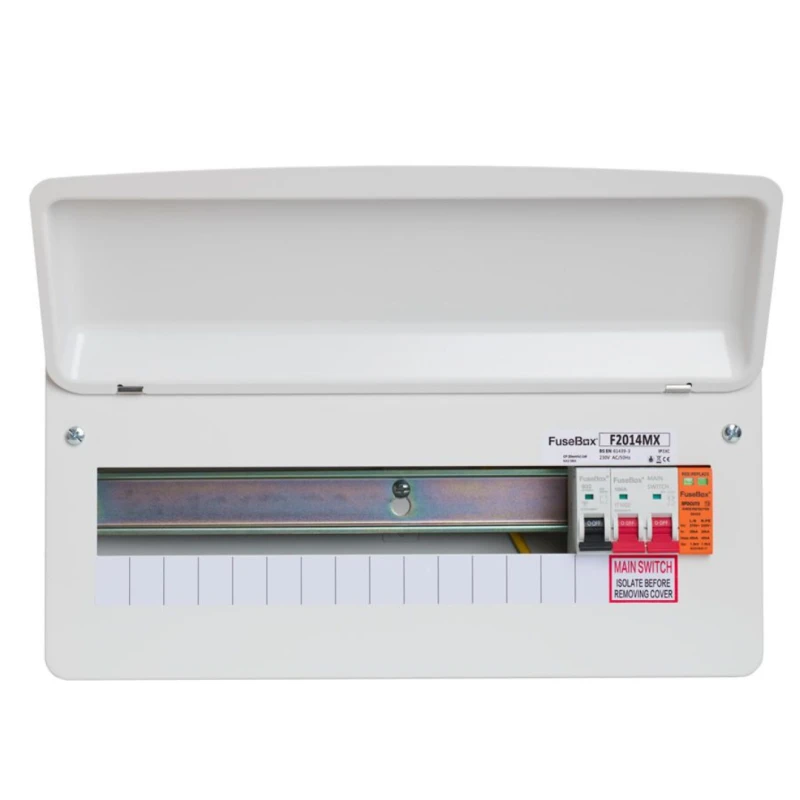

The fusebox F2014MX main switch SPD consumer unit has 14 usable ways and comes with 100A Main Switch Incomer, surge protection device and a 32mm tails clamp.

As with all of the FuseBox boards, the F2014MX has more than enough space for installation of both the standard height and mini RCBO

Additional features on all boards from the Fusebox range include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

• Supplied with a 100A MS (Main Switch), busbar and din rail
• Built in T2 Fusebox Surge Protection Device incomer which is MCB protected
• Fusebox 14 Usable Way RCBO Consumer Unit
• Captive Screws now standard on the front cover
• Grommet Strip now included
• Label pack
• 18th Edition Regulation Overload and Surge Protection compliant
• Amendment 3 non-combustible, metal enclosure
• The MS takes up 2 modules
• The MCB used to protect the SPD takes up 1 module
• Now includes the ACCF tail clamp with all models apart from the double row 21 and 44 way boards
• 1mm electro-galvanised steel (zinc)
• Earth and neutral terminal bars at the top
• Finish: White RAL9001 powder-coated finish
• Enclosure: Steel
• Approved to:BS EN61439-3

Dimensions – Height 263mm x Width 378mm x Depth 116mm
