FuseBox amendment 3 compliant large, robust metal consumer unit range is finished in a smooth white with conduit knockouts on all planes and large knockouts to the rear. Removable key slot din rail together with earth and neutral terminal bars positioned at the top ensure a quick and easy installation. Blanks and circuit identification labels are supplied with all consumer units.

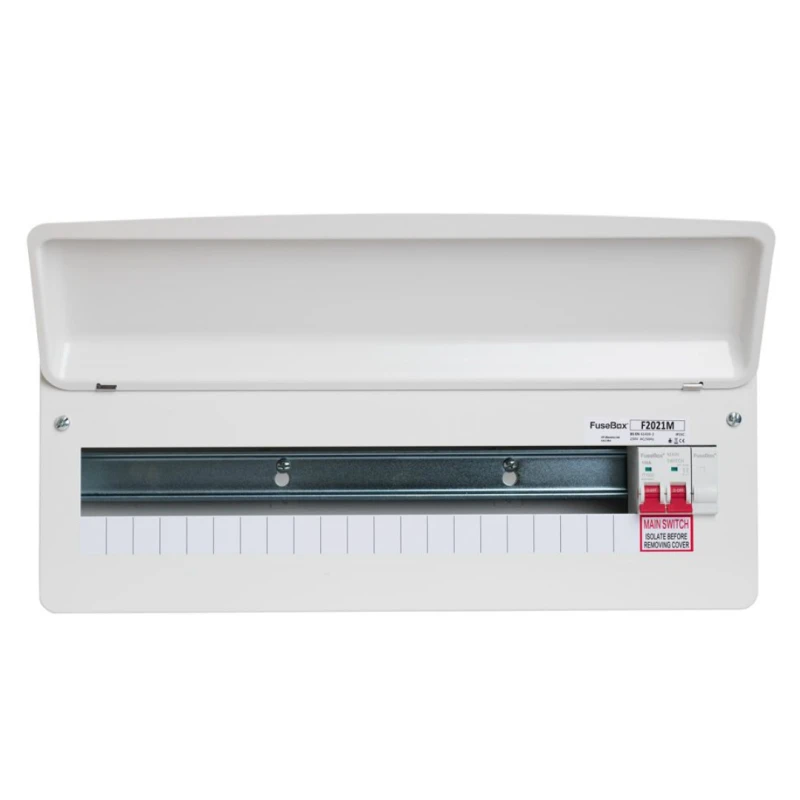

The fusebox F2021M main switch consumer unit features 21 usable ways and comes with 100A Main Switch Incomer and a 32mm tails clamp. You also have space to fit a surge protection device too.

As with all of the FuseBox boards, the F2021M has more than enough space for installation of both the mini and standard height RCBO

Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

• AMD3 Compliant
• Fusebox 21 Useable way RCBO consumer unit
• Self closing lid
• Captive Screws now standard on the front cover
• Grommet Strip now included
• Smooth White Finish RAL9003
• Comprehensive label sheet

Dimensions: H 263mm x W 486mm x D 116mm
