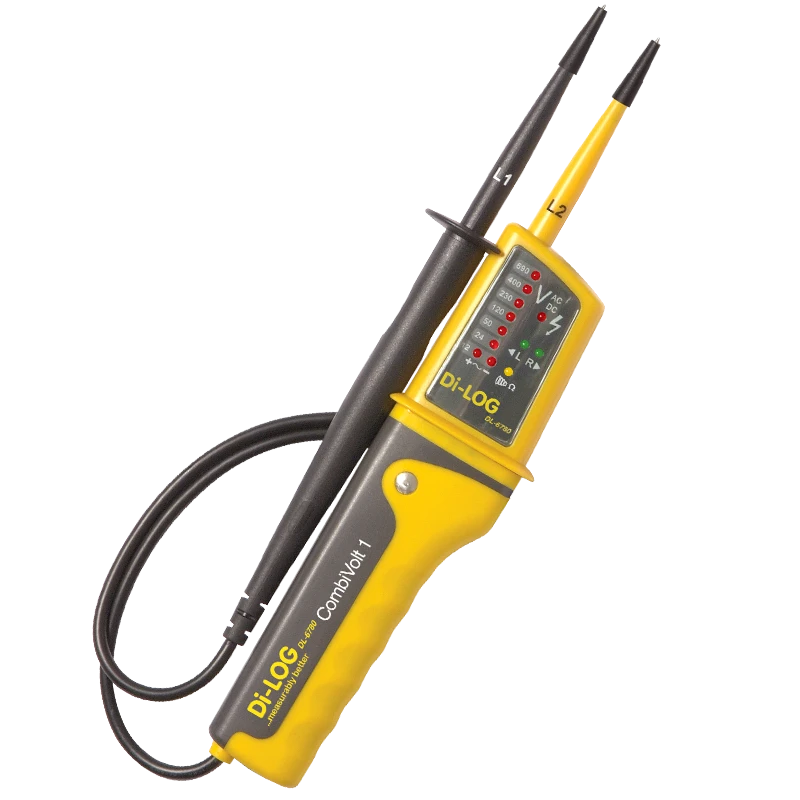

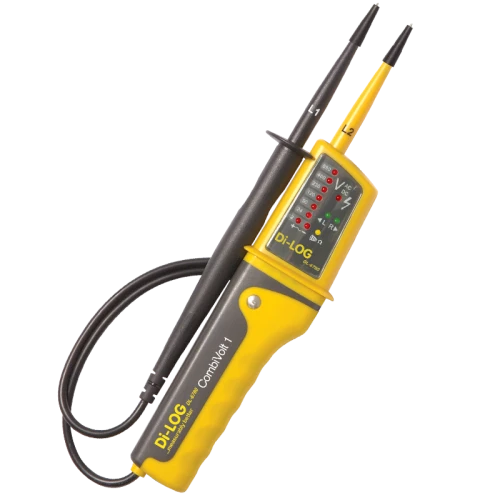

Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester
Model:DL6780
Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester
Model:DL6780
-
£42.73 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£35.61 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
CombiVolt™ Voltage & Continuity Testers with Phase Rotation Test
The three-in-one testers with a rugged, ergonomically formed housing for perfect handling.
Fully conformant to BS EN 61243-3:2014
Key Features
- Testing of AC/ DC voltages from 12 to 690 V AC/DC
- Continuity testing with optical and acoustic indication
- Automatic switching between voltage and continuity
- Phase rotation test system
- Single pole phase indication
- Fully compliant with GS38
- Fully operational voltage indication even when batteries are discharged
- Will not trip any RCD when testing across Live and Earth
- Single pole detection when L2 probe connected above 100V
Specifications
| Voltage display | 12 – 690 V AC/DC |
| LED resolution | 12, 24 , 50, 120, 230, 400, 690 |
| LCD resolution | n/a |
| Voltage detection | Automatic |
| Acoustic signal | AC voltage – DC voltage |
| Polarity detection | Full range |
| Response time | LED < 0.1s |
| Frequency range | 0 – 400 Hz |
| Peak current | Is < 0.3 A / Is (after 5s) < 3.5 mA |
| Operation time | 30s |
| Recovery time | 10 min |
| Auto power on | < 12 V AC/DC |
| Single pole voltage indication | |
| Voltage range | 100 – 690 V AC |
| Frequency range | 50 – 400 Hz |
| Continuity | |
| Measuring range | 0 – 400 KΩ |
| Phase rotation test | |
| Voltage range | 100 – 690 V |
| Frequency | 45 – 65 Hz |
| Over voltage protection | 690 V AC/DC g |
| Safety Standards | CAT IV 600V IEC 60529 (IP65), 61243-3 EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1 |
| Power supply | 2 x 1.5 V LR03 batteries |
| Dimensions | 255 x 70 x 28 mm |
| Weight | 200 g |
