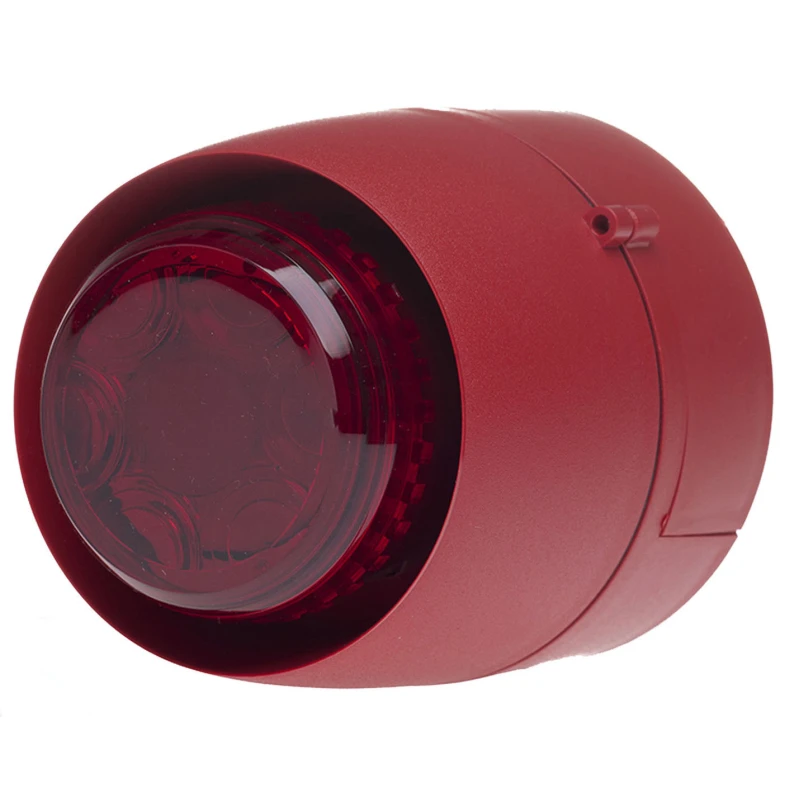

The C-Tec BF433C/CR/5 Fire Sounder is part of the VTB range of fire Panels and can be used in a variety of commercial settings.

Overview –

32 Tones plus a selectable override tone

Removable cover on base for surface wiring

Designed to work with both conventional and two wire systems

Technical Specification –

Voltage Range (VDC) – 21-28

Number of Tones – 32

Operating Frequency (Hz) – 440- 2900

Temperature Range (ºC) - -20 to + 70

Flash Rate- c. 1Hz

Monitoring – Reverse Polarity

Protection Rating – IP21C ( shallow) IP33C (deep)

Weight (kg) – 0.22 (Shallow) 0.25 ( deep)

Dimensions - (H) 93.6 x (W) 93.6 x (D) 93.6

EN54 Rated
