Crabtree Starbreaker 61/C10630 RCBO SP C 6A 30mA 6kA
Model:61/C10630
Crabtree Starbreaker 61/C10630 RCBO SP C 6A 30mA 6kA
Model:61/C10630
-
£23.99 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£19.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
10 Left In Stock
Crabtree offer a wide range of wiring accessories, circuit protection and control equipment for the residential, commercial and industrial markets worldwide.
The Crabtree Starbreaker range of consumer units offers a full metal enclosure with no exposed plastic parts, meaning it is in line with Amendment No. 3 to BS7671 IET Wiring Regulations. All units have low smoke & fume paint and a self-closing, stay shut door with metal hinges.

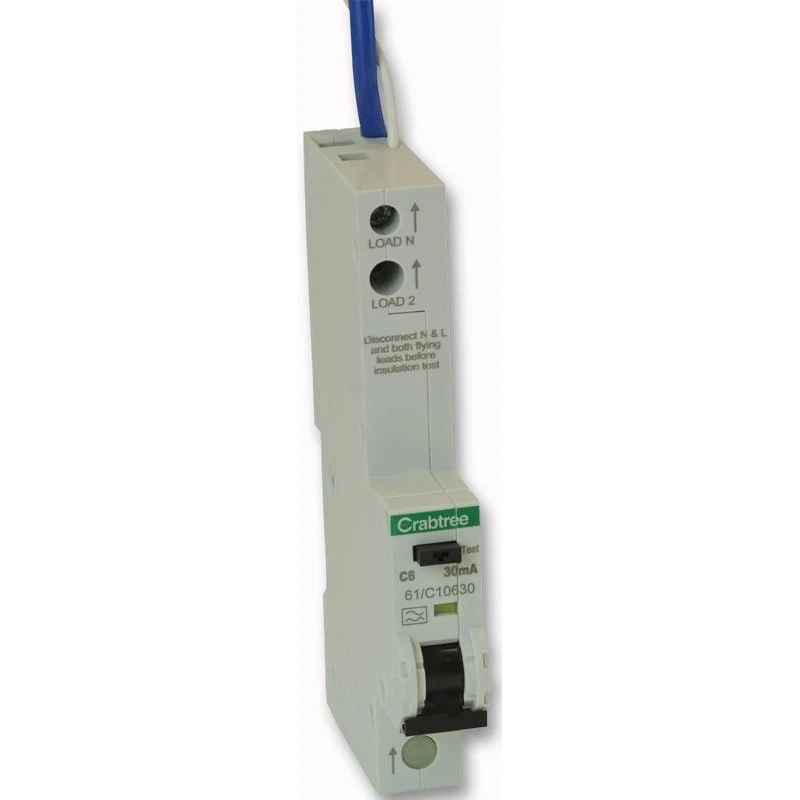

The Crabtree 61/C10630 is a single pole, 6A, Type C RCBO.
| Circuit Breakers|Description|Product | Circuit Breaker |
| Circuit Breakers|Description|Type (Cable Baskets) | RCBO |
| Circuit Breakers|Features|Ingress Protection | IP20 |
| Circuit Breakers|Features|Trip Type | Type C |
| Circuit Breakers|Features|Short Circuit Rating | 6 kA |
| Circuit Breakers|Features|Sensitivity | 30 mA |
| Circuit Breakers|Dimensions|Height | 125 mm |
| Circuit Breakers|Dimensions|Width | 17.6 mm |
| Circuit Breakers|Dimensions|Depth | 44 mm |
| Circuit Breakers|Technical Data|Current Rating | 6 A |
| Circuit Breakers|Technical Data|Voltage | 230|240 V |
| Circuit Breakers|General|Standards | IEC/EN 61009-1/61009-2-1/61543 |
| Dimension | 6A 30mA 6kA |
| Circuit Breakers|Description|Type | RCBO |
| Circuit Breakers|Dimensions|Cable Capacity | 0.75 to 16 mm2 |
| Manufacturer | Crabtree Electrical Industries Ltd |
| Brand | Starbreaker |
