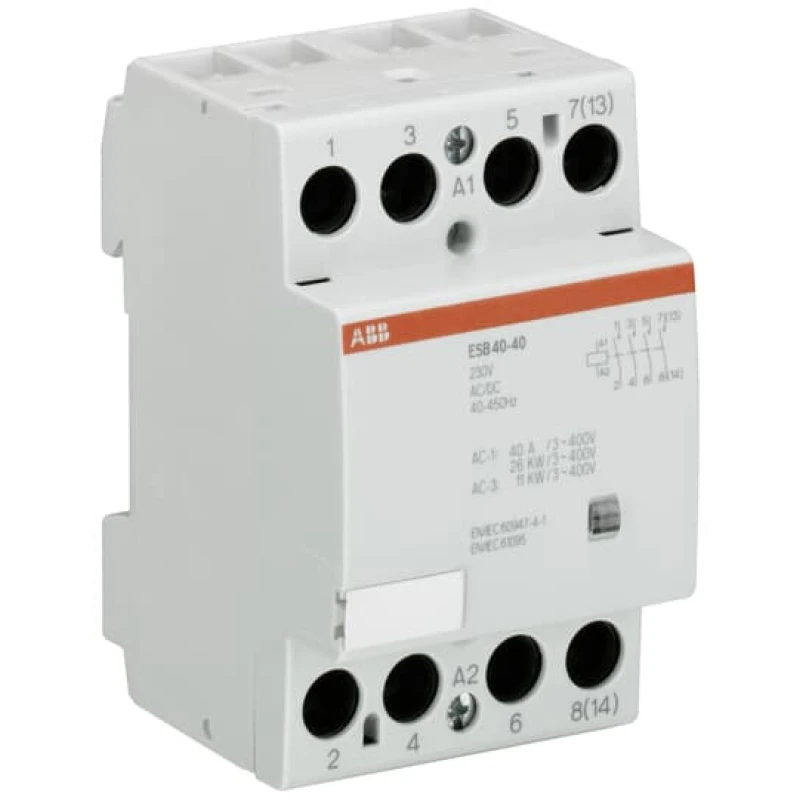

The ESB40 installation contactor is a 4 pole contactor suitable for modular switchboards. They are specially designed fitting to modular DIN rail products and for applications where customers want to use the panel design with high finger protection. Installation contactors are used in residential, commercial and industrial applications for the control of single or three-phase loads up to 40 A or switching of control signals. Further features are the noiseless and hum-free DC coil, the integrated overvoltage protection up to 5 kV and a switch position indication. Auxiliary contacts, distance pieces and sealing cover for protection against reauthorized changes are available as accessory.

Technical

• Rated Operational Voltage:

  Main Circuit 220 V DC
  Main Circuit 400 V AC


• Rated Control Circuit Voltage (Uc):

  230 V


• Rated Frequency (f):

  Control Circuit DC
  Control Circuit 50 Hz
  Control Circuit 60 Hz
  Control Circuit 400 Hz
  Main Circuit DC
  Main Circuit 50 Hz
  Main Circuit 60 Hz


• Rated Operational Current AC-1 (Ie):

  (NC) 30 A
  (NO) 40 A


• Rated Operational Current AC-3 (Ie):

  (230 V) Single Phase 22 A
  (400 V) Three Phase 22 A


• Rated Operational Power AC-1 (Pe):

  (230 V) Single Phase 9.2 kW
  (400 V) Single Phase 26 kW


• Rated Operational Power AC-3 (Pe):

  (230 V) Single Phase 3.7 kW
  (400 V) Three Phase 11 kW


• Rated Operational Current AC-7a (Ie):

  (NC) 30 A
  (NO) 40 A


• Rated Operational Power AC-7a (Pe):

  (230 V) Single Phase 9.2 kW
  (400 V) Three Phase 26 kW


• Rated Operational Current AC-7b (Ie):

  (230 V) Single Phase 22 A
  (400 V) Three Phase 22 A


• Rated Operational Power AC-7b (Pe):

  (230 V) Single Phase 3.7 kW
  (400 V) Three Phase 11 kW


• Recommended Screw Driver:

  Control Circuit Pozidriv 1
  Main Circuit Pozidriv 2


• Rated Impulse Withstand Voltage (Uimp):

  6 kV


• Rated Insulation Voltage (Ui):

  acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 500 V


• Connecting Capacity Main Circuit:

  Flexible with Ferrule 1x 1.5 ... 16 mm²
  Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²
  Flexible 1x 1.5 ... 16 mm²
  Rigid 1x 1.5 ... 25 mm²
  Rigid 2x 10 mm²


• Connecting Capacity Control Circuit:

  Flexible with Ferrule 1x 0.75 ... 2.5 mm²
  Flexible with Ferrule 2x 0.75 ... 1 mm²
  Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²
  Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
  Flexible 1x 1 ... 4.0 mm²
  Flexible 2x 1 ... 2.5 mm²
  Rigid 1/2x 1 ... 4 mm²
  Rigid 2x 2.5 mm²


• Tightening Torque:

  Control Circuit 0.9 N·m
  Main Circuit 2.5 N·m


• Wire Stripping Length:

  Control Circuit 7 mm
  Main Circuit 13 mm


• Degree of Protection:

  IP20


• Electrical Durability:

  AC-1 150000 cycle
  AC-3 170000 cycle
  AC-7a 150000 cycle
  AC-7b 170000 cycle


• Mechanical Durability:

  1000000 cycle


• Number of Poles:

  4


• Number of Auxiliary Contacts NC:

  0


• Number of Auxiliary Contacts NO:

  0


• Number of Main Contacts NC:

  0


• Number of Main Contacts NO:

  4


• Width in Number of Modular Spacings:

  3


• Pollution Degree:

  3


• Standards:

  IEC/EN 60947-1
  IEC/EN 60947-4-1
  IEC/EN 60947-5-1
  IEC/EN 61095
  UL 60947-1
  UL 60947-4-1
