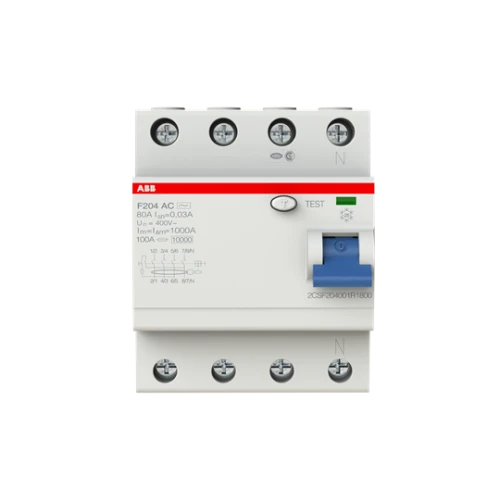

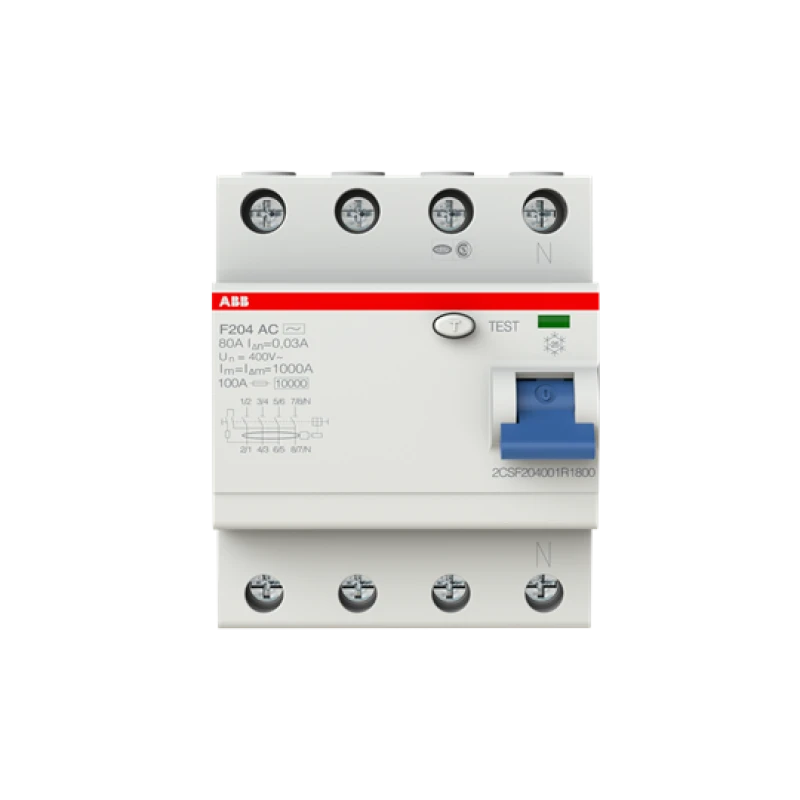

ABB 2CSF204001R1800 F204AC-80/0.03 RCCB
Model:F204AC-80/0.03
ABB 2CSF204001R1800 F204AC-80/0.03 RCCB
Model:F204AC-80/0.03
-
£378.01 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£315.01 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Technical
- Standards:
- IEC/EN 61008
UL 1053
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- AC type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 80 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 5.3 W
- Rated Voltage (Ur):
- 400 V
- Rated Frequency (f):
- 50...60 Hz
Environmental
- Ambient Air Temperature:
- Operation -25...55 °C
- RoHS Status:
- Following EU Directive 2011/65/EU
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- 480Y / 277 V AC
- Short-Circuit Current Rating (SCCR):
- 0.03 mA
