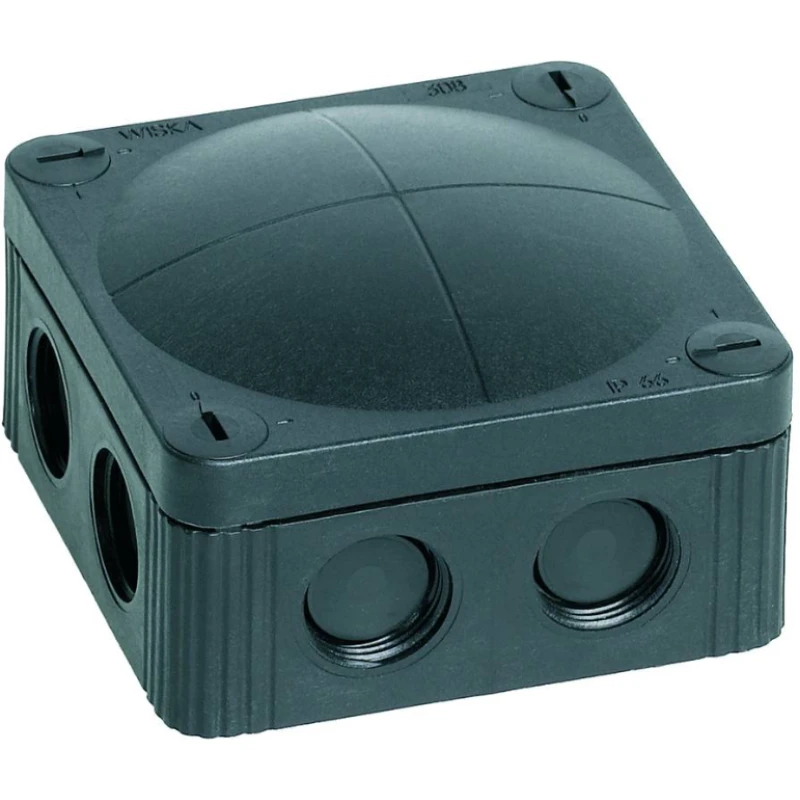

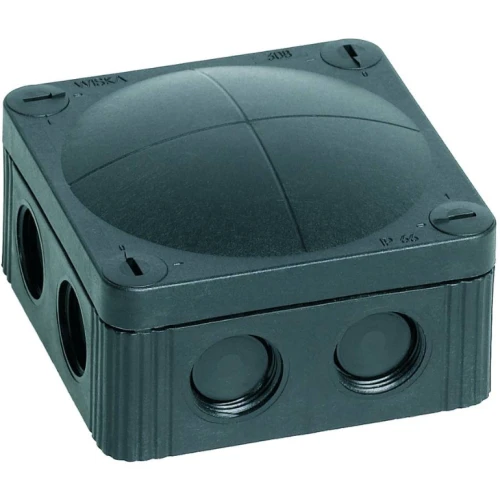

WISKA COMBI 85X85 IP66 BLACK JUNCTION BOX
Model:10060580
WISKA COMBI 85X85 IP66 BLACK JUNCTION BOX
Model:10060580
-
£5.03 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£4.19 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Fixing: With mounting clip or 4 internal openings outside of the sealing area
Equipment: 8 elastic self-sealing puncture-membranes for cable entry
8 integrated M20 thread for mounting without lock nut
4 captive cover screws
including mounting clipMaterial Polypropylene Material sealing gasket TPE Temp. range min -30 °C Temp. range max 100 °C Temperatures during install. -5 °C - 60 °C Protection class IP66 / IP67 Glow wire test 750 °C Voltage 400 V Rated cross section 4 mm² Fixing 4 internal openings Ø cable diameter min 3 mm Ø cable diameter max 12 mm External dimensions LxWxH 85 x 85 x 51mm Type of cable gland M 20 x 1,5 Using for cable gland Product Color RAL 9005 WISKA-Order no. 10060581 Type COMBI® 308 BK Packing unit 5 ETIM-Classification EC002600
